The Next Big Thing in Truckmounts

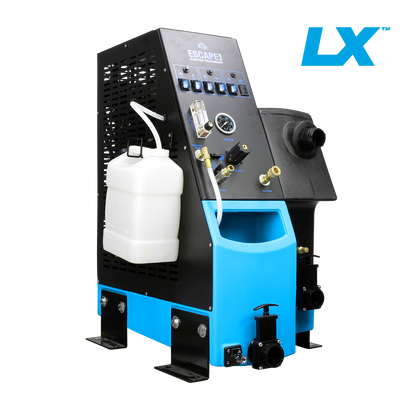

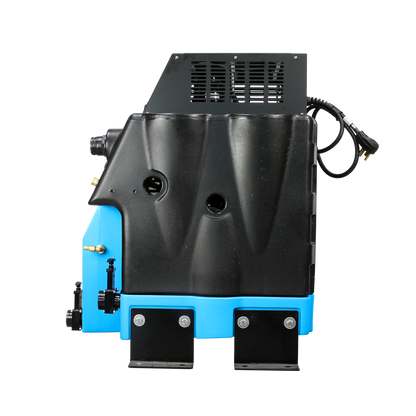

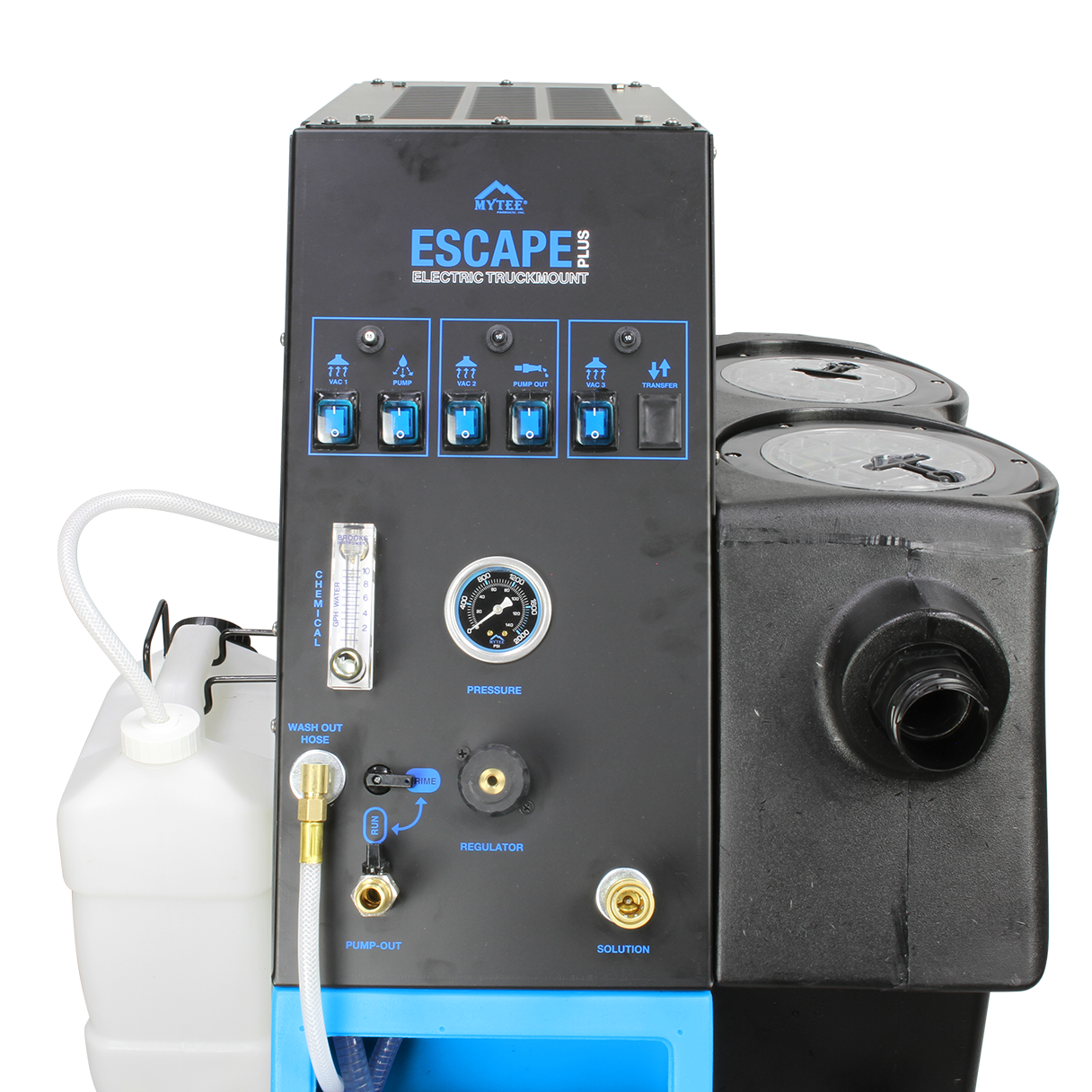

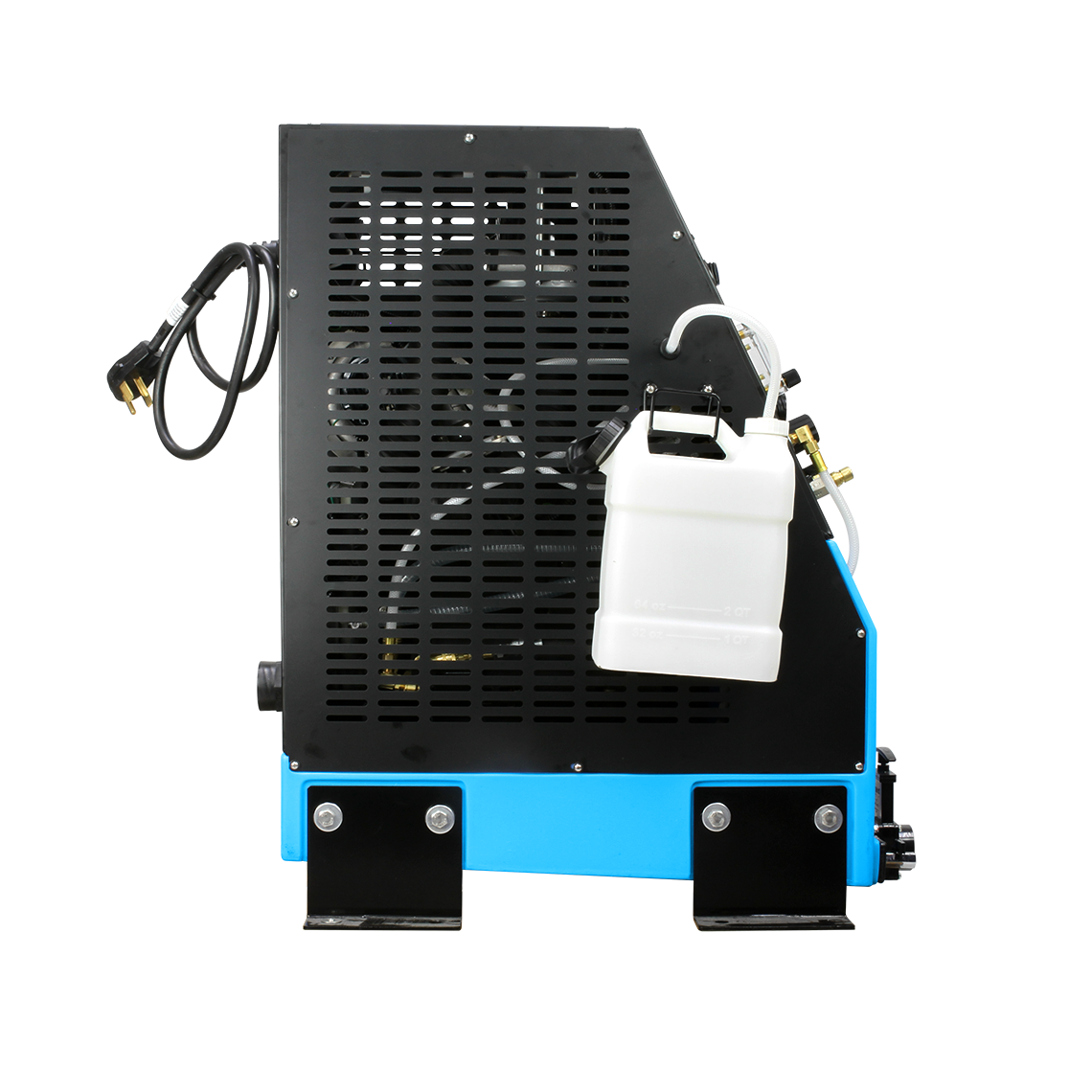

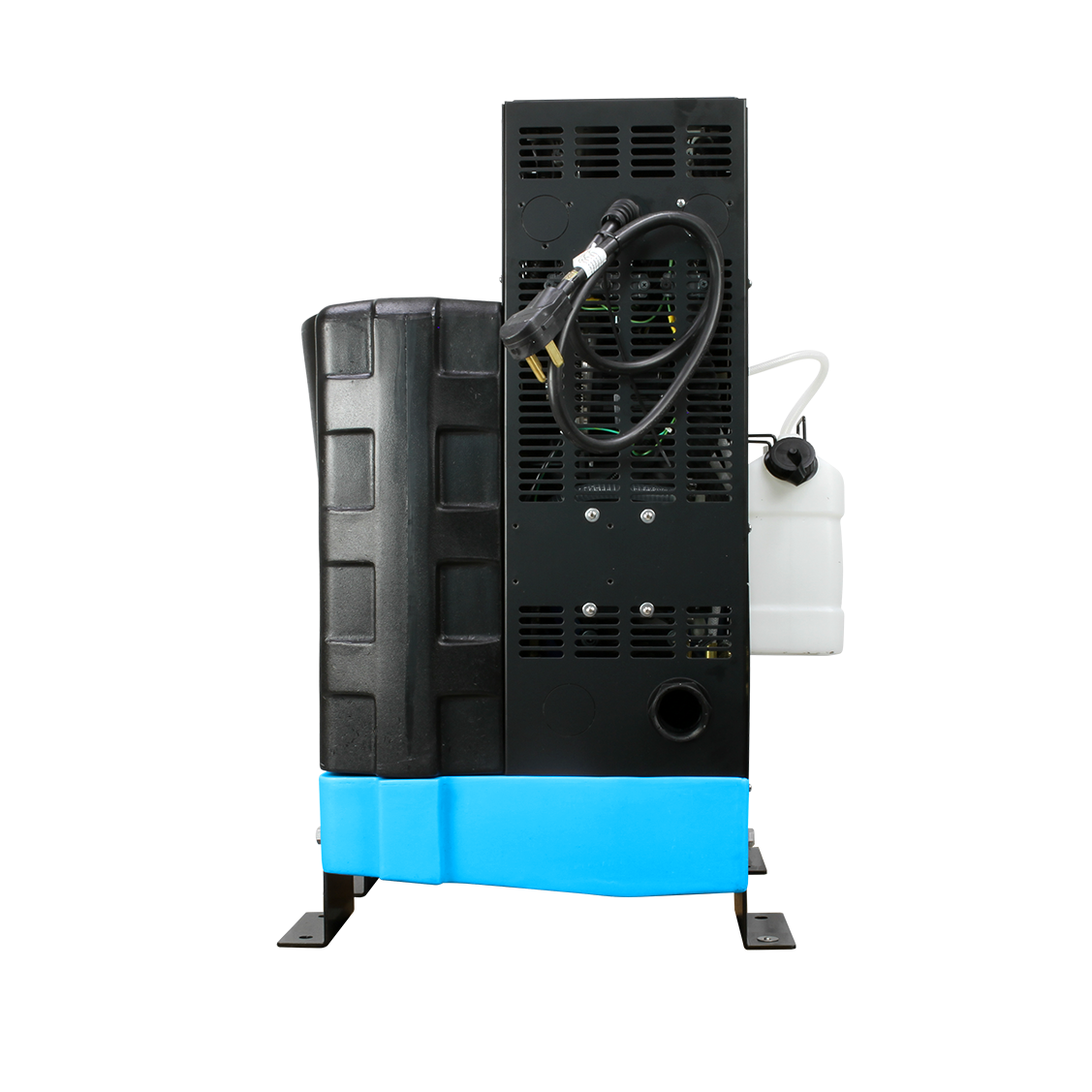

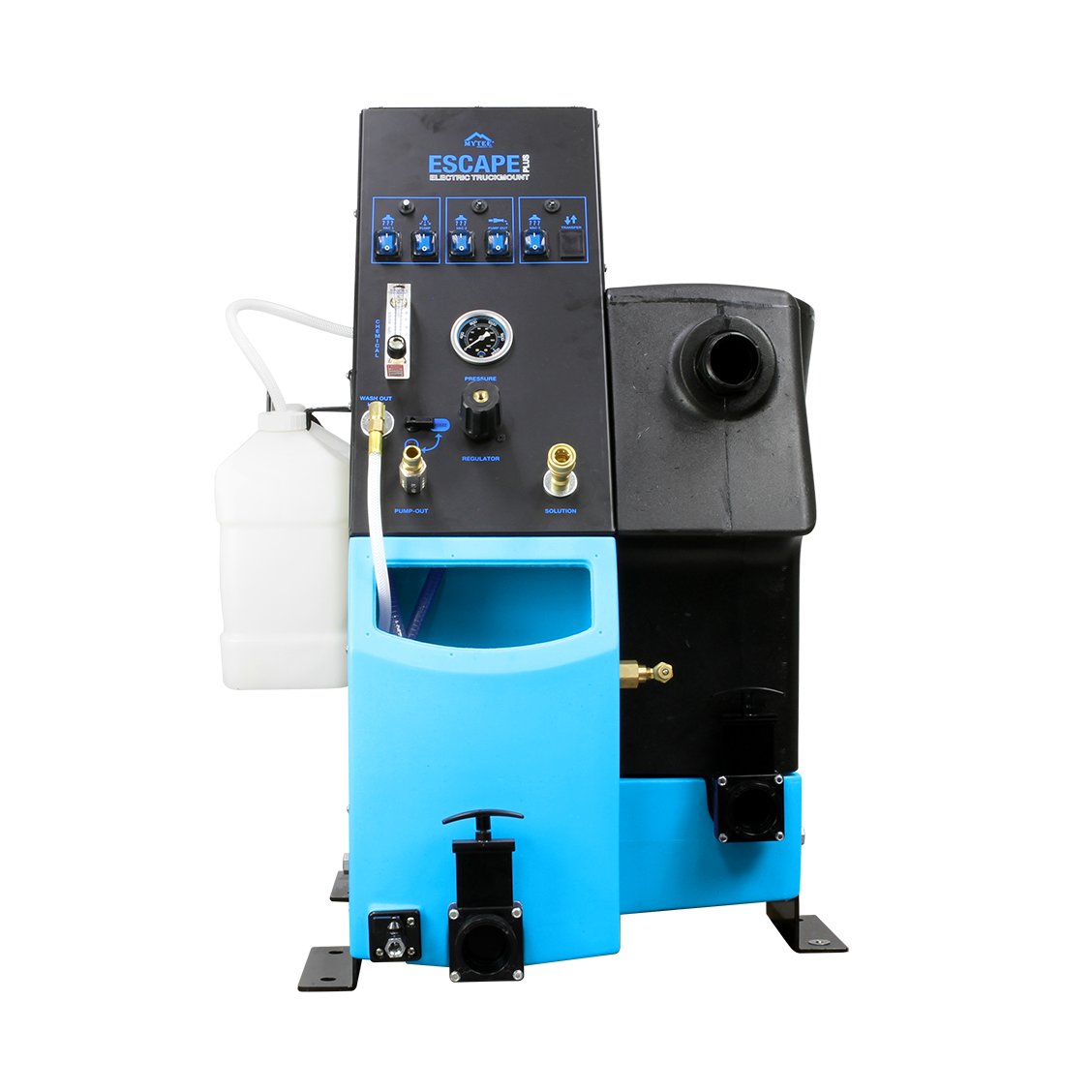

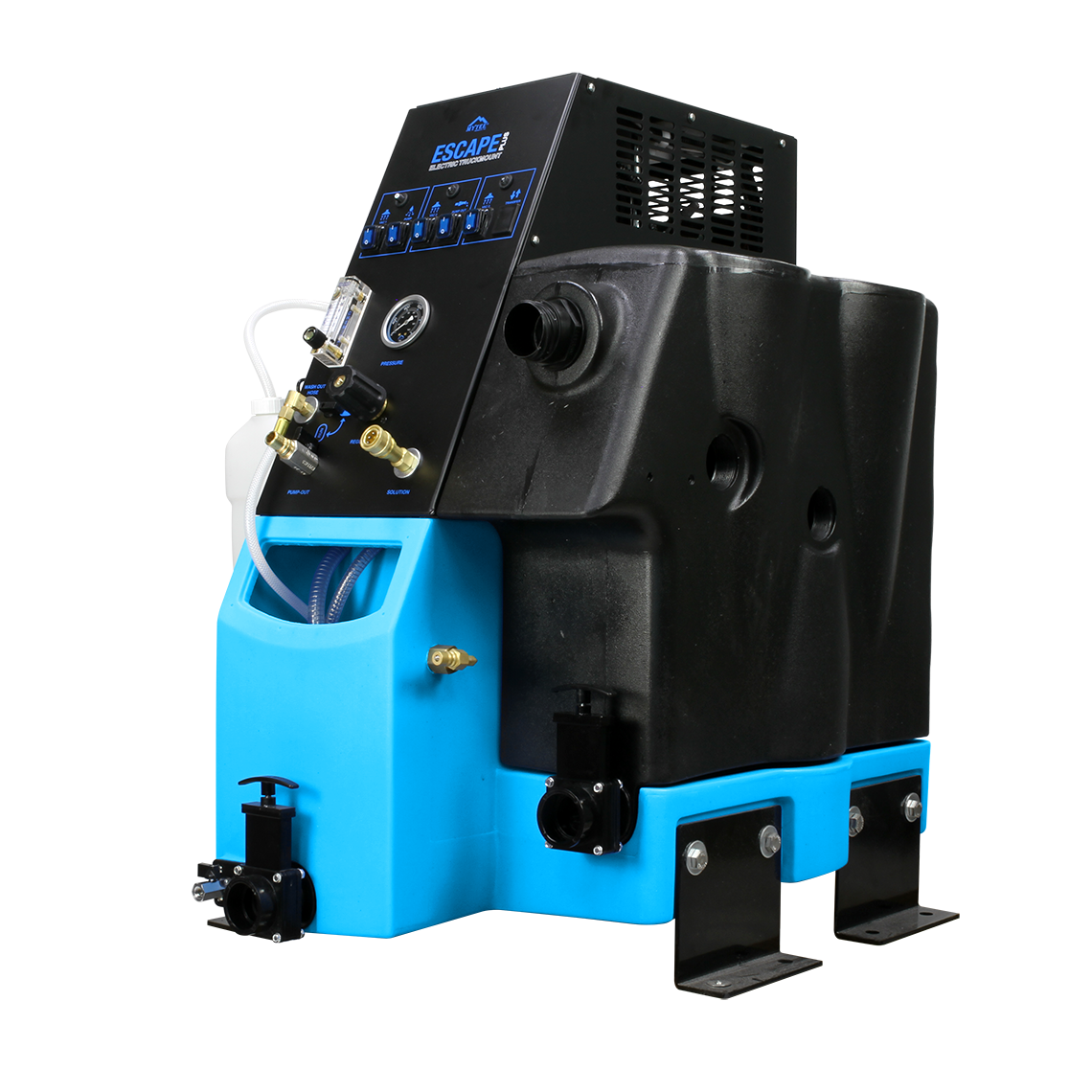

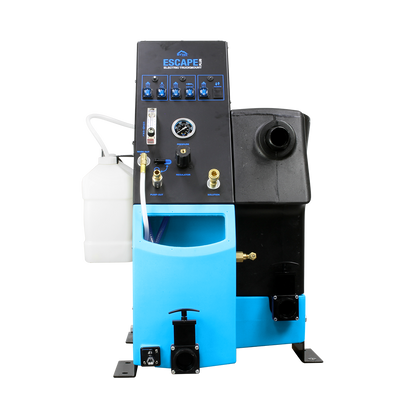

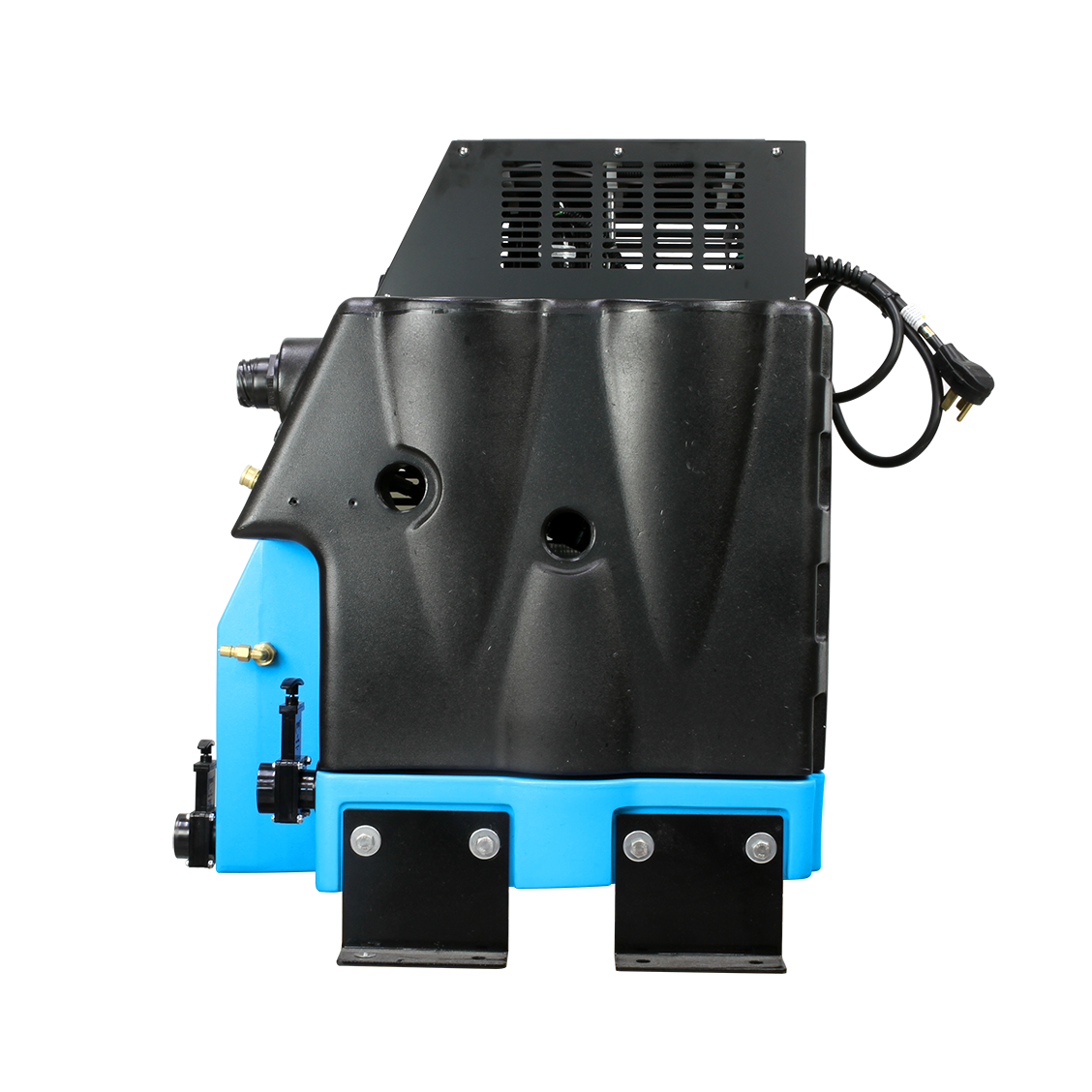

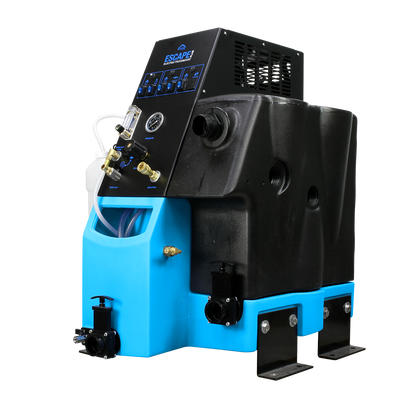

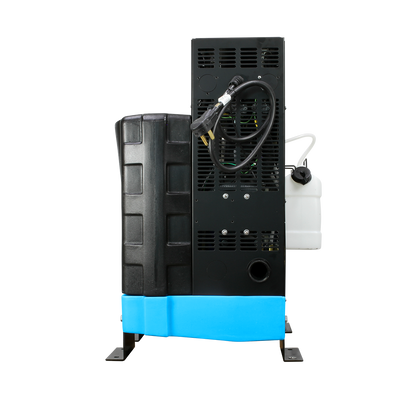

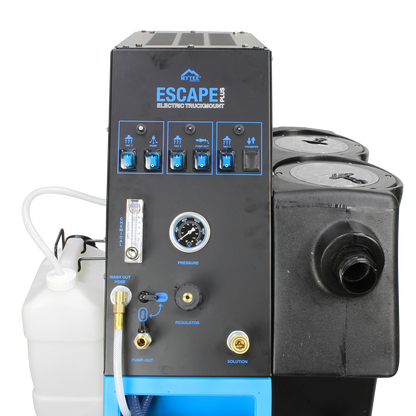

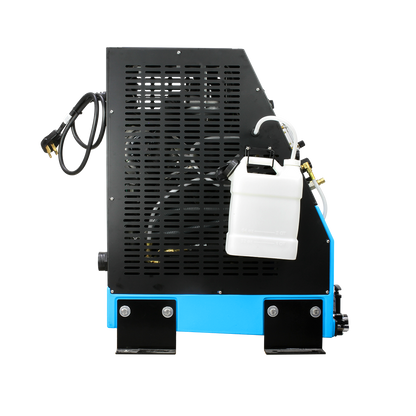

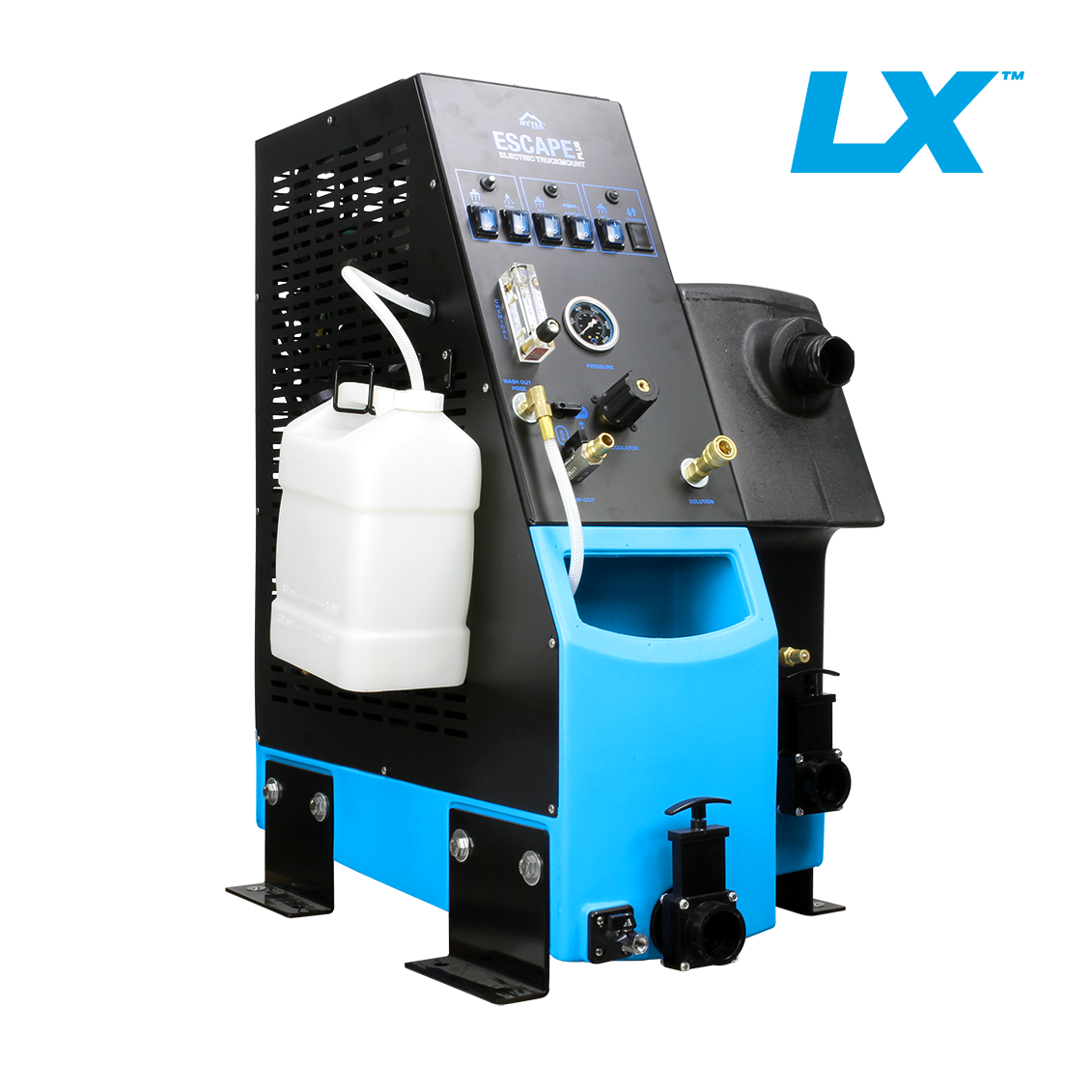

Introducing the Escape® LX™ Plus, the first electric truckmount to truly rival gas power! Featuring three LX™ vacuums, the specs of the Escape® LX™ Plus are undeniable: 350 CFM and 17.5 in. Hg – and at a fraction of the cost of gas-powered truckmounts!
ou can now enjoy the advantages of electric–such as reduced costs, minimal maintenance, and low environmental impact–without sacrificing raw power. The Escape® LX™ Plus also comes standard with chemical metering, a 1,200 PSI solution pump (regulated to 1,000 PSI) and a 3.5 GPM pump-out to make for one seriously incredible machine!
Features:
- Three exclusive Mytee® LX™ Vacuum Motors – producing 350 CFM and 17.5 in. Hg
- 250′ effective hose run range
- Auto-fill and automatic pump-out
- 12 gallon solution and recovery tanks
- 3.5 GPM pump-out
- 1,200 PSI adjustable solution pump (regulated to 1,000 PSI)
- Chemical metering
- Runs off a single 5′ 4-prong power cord. Draws 30 amps @ 230V 60Hz.
- Weighs only 190 lbs!
Includes:
- F200 Lint Hog™ In-line Filter –
- 7 qt. Big Mouth™ Bottle for chemical injection
- 2″ x 2″ male Cuff-Lynx™ coupler
- 2″ x 2″ female Cuff-Lynx™ coupler
| Body |
Roto-molded polyethylene tanks |
|---|---|
| Solution Tank |
12 gallon (45.4 L) capacity |
| Vacuum Tank |
Approx. 12 gallon (45.4 L) capacity |
| Vacuums |
Three LX™ Vacuum Motors |
| Pump |
Pumptec Piston Pump |
| Pump-Out |
3.5 GPM |
| Power Cord |
5' 4-prong dryer power cord |
| Amp Draw |
30 amps @ 230V 60Hz |
| Generator Requirements |
Minimum Running Wattage: 8,625W |
| Net Weight |
190 lbs. (86.2 kg) |
| Machine Dimensions |
37" x 25.5" x 38.5" (94 cm x 64.8 cm x 97.8 cm) |
| Shipping Weight |
260 lbs. (117.9 kg) |
